 Super
Blender (DW-B-S)
The super blender consists of a main cylinder and
five beater rollers. It blends precisely measured
raw materials and simultaneously opens them. Finally,
the blender sends the materials to the next process.
It is an excellent blender and breaker. |
|
|

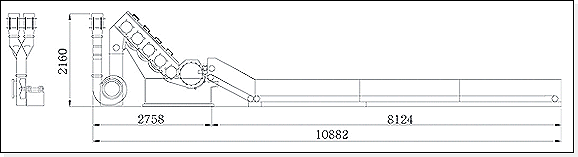

| ▶ Dimensions |
 |
| |
| ▶ Specifications |
| SPEC
＼ TYPE |
DW
- B - S 40" |
DW
- B - S 50" |
DW
- B - S 60" |
| M/C
Dimensions |
Length(mm) |
10882 |
10882 |
10882 |
| Width(mm) |
2046 |
2300 |
2554 |
| Height(mm) |
2160 |
2160 |
2160 |
| Electric
Power |
Cylinder
Motor |
7.5
kw |
11
kw |
11
kw |
| Feeder
Motor |
2.2
kw |
2.2
kw |
2.2
kw |
| Fan
Motor |
3.5
kw |
5.5
kw |
5.5
kw |
| NO |
Name
of Roller |
Quantity |
Dimension
(DIAX Width) |
Dimension
(DIAX Width) |
Dimension
(DIAX Width) |
| 1 |
Cylinder |
1 |
Ø 508 × 990 |
Ø 508 × 1245 |
Ø 508 × 1499 |
| 2 |
Beater |
5 |
Ø 267 × 990 |
Ø 267 × 1245 |
Ø 267 × 1499 |
| 3 |
Feeder |
2 |
Ø 100 × 965 |
Ø 100 × 1220 |
Ø 100 × 1473 |
|
| ※ The numbers specified above
are rough measurements and subject to change according
to users? requirements, raw materials, and working conditions. |
| |
 |
 |
| 비터로라 |
원료공급장치 |
|
|
| |
 |
Heat-treated teeth attached to rollers
(the main cylinder and beater roller) in a zigzag
pattern prevent raw materials from collecting at
one side and maximize the effects of blending and
breaking. |
|
| |
| |
